One of the First U.S. Wastewater Utilities to Turn Biogas into Power and Thermal
Dallas Water Utilities WWTP (Biogas Cogen Facility), TX
Overview

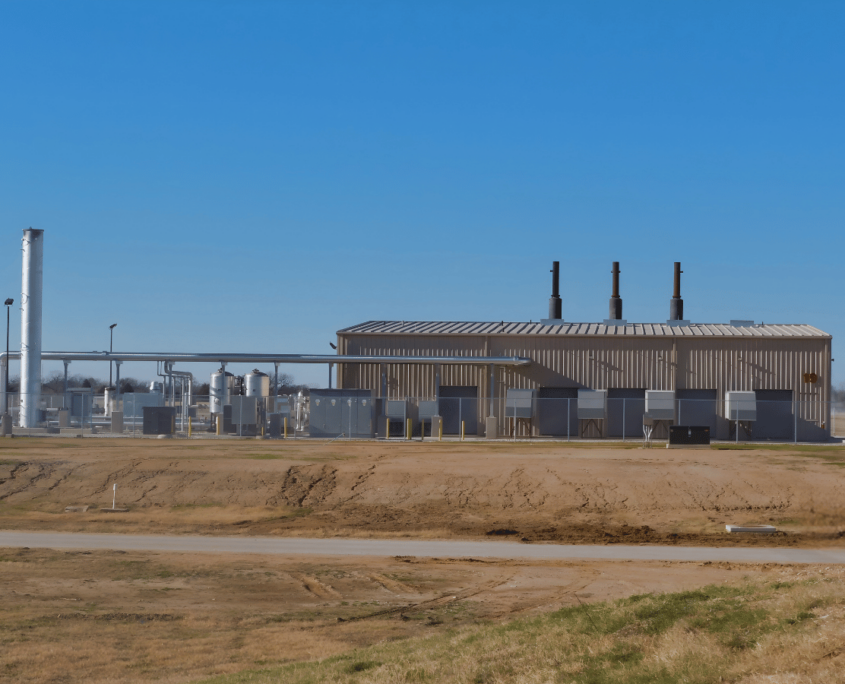

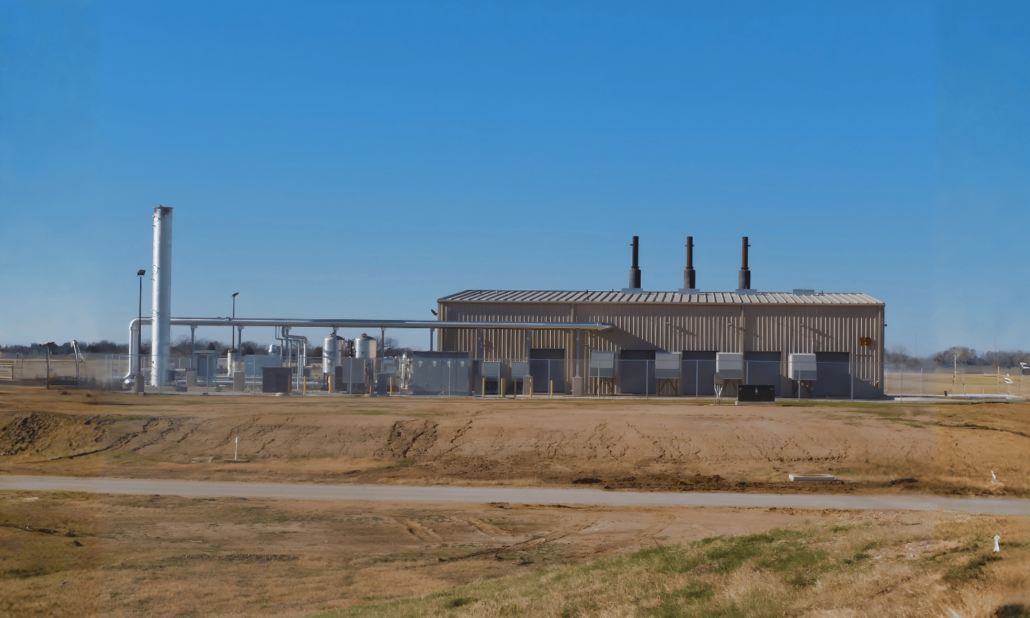

Neogenyx Fuels developed, owns, and operates a biogas cogeneration facility at the Dallas Water Utilities’ Southside Wastewater Treatment Plant, one of the largest wastewater treatment operations in Texas serving ~2.5 million people. DWU was one of the first wastewater utilities in the U.S. to recycle biogas into electricity. The 4.2 MW facility captures methane generated during the sewage treatment process – transforming what was previously flared into on-site electricity and thermal load. The cogeneration approach utilizes ~80% of the biogas resource – more than double the efficiency of a typical electrical-only generation plant.
Solution & Benefits

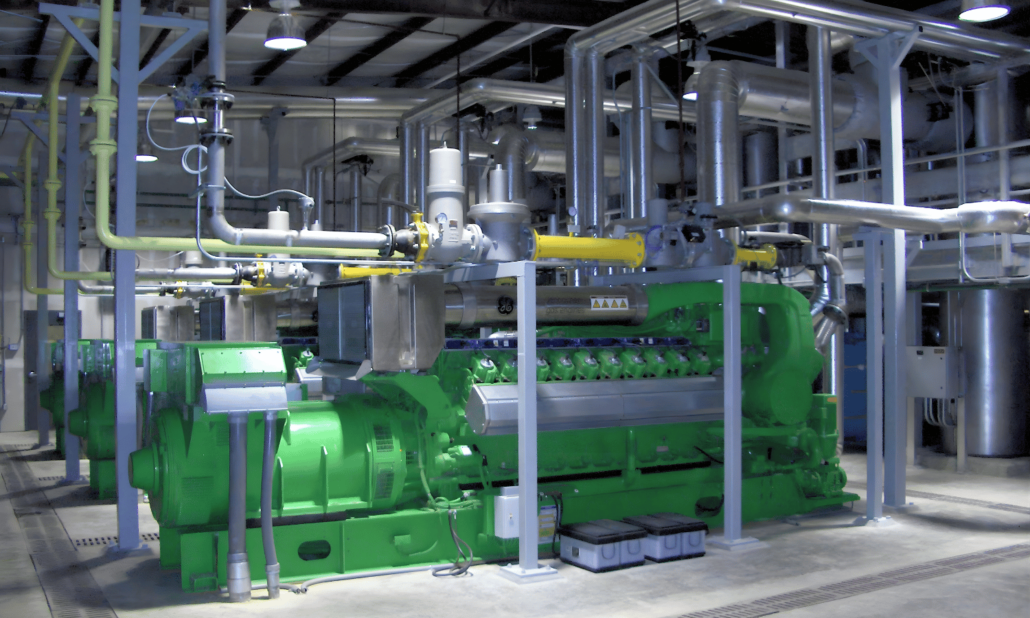

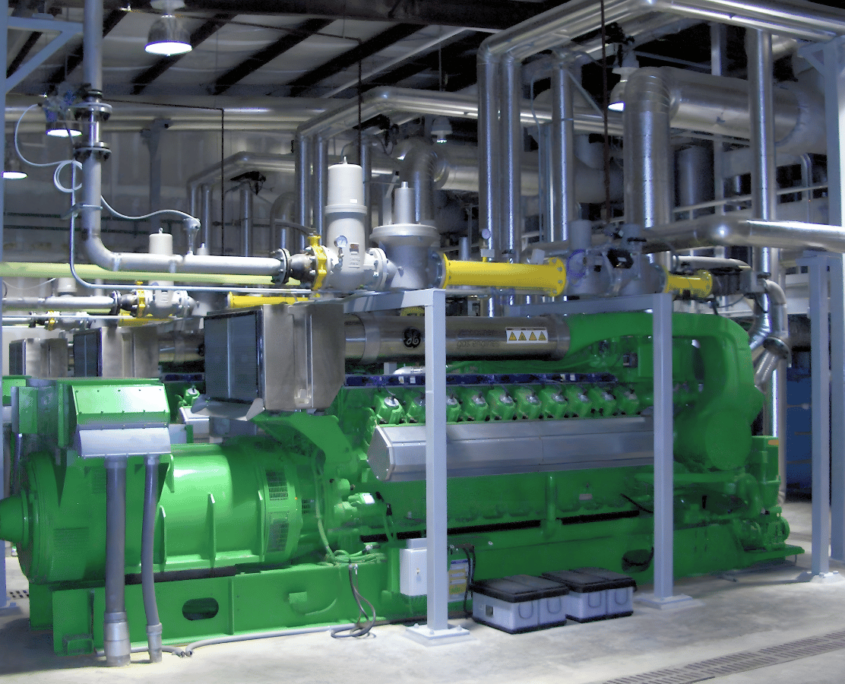

The facility processes ~1,200 standard cubic feet per minute (SCFM) of biogas, feeding it into three engine-generators with heat recovery that cogenerate electricity and hot water – offsetting ~60% of the electricity DWU previously purchased from the grid while providing thermal energy to heat digester vessels. Achieving commercial operation in 2011, the plant saves the City ~$1.5 million annually in energy costs.
Beyond clean energy production, the cogeneration facility delivers significant benefits, including:
- Reduction of up to ~20,000 metric tons of CO₂ emissions annually
- Emissions reductions equivalent to ~4,600 gasoline-powered passenger vehicles driven for one year
- ~$1.5 million in annual energy cost savings for the City
- Generation of ~32,000 Renewable Energy Credits (RECs) per year
- No upfront capital cost or additional staffing requirements for the City
- Compliance support for Texas renewable energy requirements
Project Details
Solutions
Wastewater Biogas-to-Energy; Cogeneration Plant
Developer & Operator
Neogenyx Fuels
Partnership
City of Dallas Water Utilities (DWU)
Location
Dallas, Texas
End Use
On-site cogeneration of electricity and hot water
Commercial Operation
2011
~1,200 SCFM
Biogas Processing Capacity
4.2 MW
Installed Capacity
Up to ~20,000 MT
Annual CO₂ Emissions Reduction
~60% Offset
of DWU’s Grid-Derived Electricity
~$1.5 million
Annual Energy Cost Savings
~32,000 RECs
Renewable Energy Credits Generated Annually
